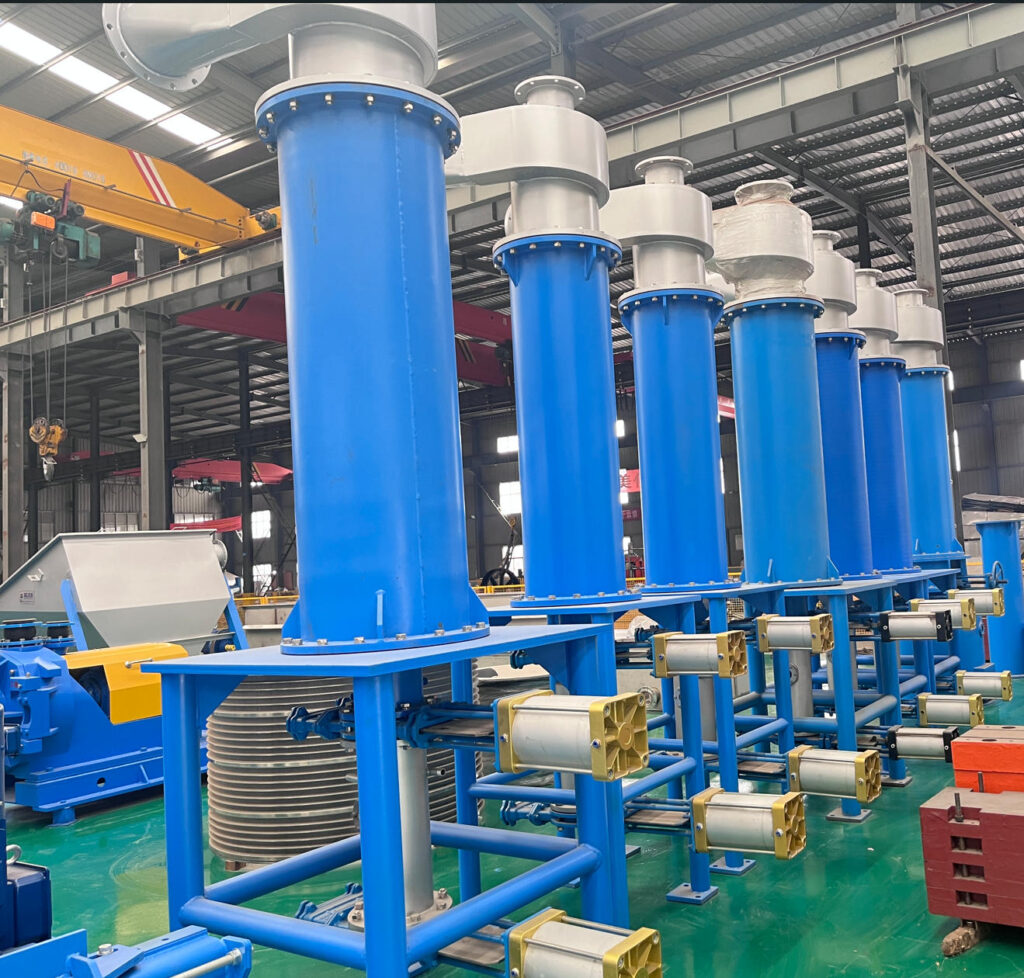

High Density Cleaner
High Density Cleaner pulp cleaning machine is for removing all kinds of heavy impurities in paper pulp, like staples, stones, glasses, etc. in stock preparation system.
Application & Feature
Volute Pulp inflow chamber, the eddy ability is strong and low pressure area subarea is obvious. This makes accepts and impurities separate thoroughly.
Wear resistance ceramics cone, long service life.
Specially designed long cone has small taper angle and fine cleaning efficiency.
Equipped with PLC control cabinet, convenient and easy to control, sufficiently discharging impurities.
Main specification
| Type | ZSC2 | ZSC3 | ZSC4 | ZSC5 | ZSC6 | ZSC7 |
| Product capacity(t/d) | 25-45 | 60-85 | 90-120 | 120-160 | 160-200 | 230-380 |
| Concentration of input pulp(%) | 2-5 | |||||
| Pressure of input pulp(Mpa) | 0.15-0.35 | |||||
| Pressure of output pulp(Mpa) | 0.1-0.25 | |||||
| Pressure of backwashwater(Mpa) | Into a pulp pressure+0.02Mpa | |||||
| Discharging mode | hand/automation | |||||
